Enhanced IR Step 2C
EIR "EYE" Pattern (Continued):
Continued.....


  • Find the shade of the coldest ring completely surrounding the eye.
  • MUST USE BD CURVE!

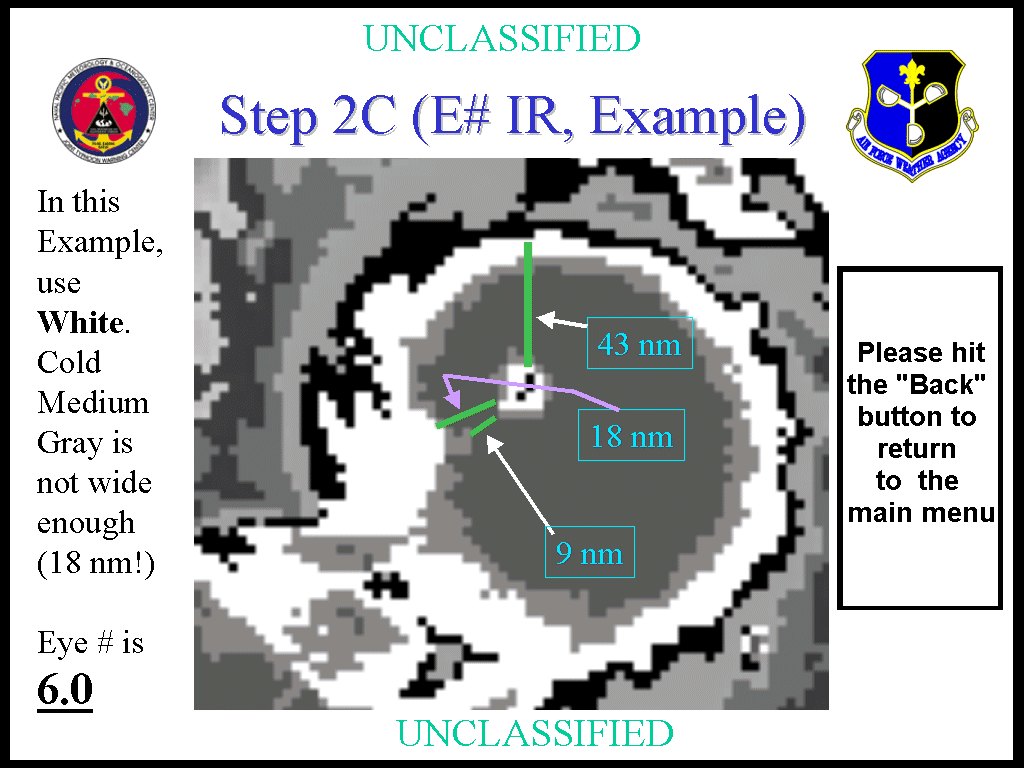

    • Click here for an example!
    • Measure the distance from the edge of the coldest color band to the outside edge of the coldest surrounding ring.
  • For EIR, NEVER USE the center of eye! (center is only used in VISUAL)!

    •

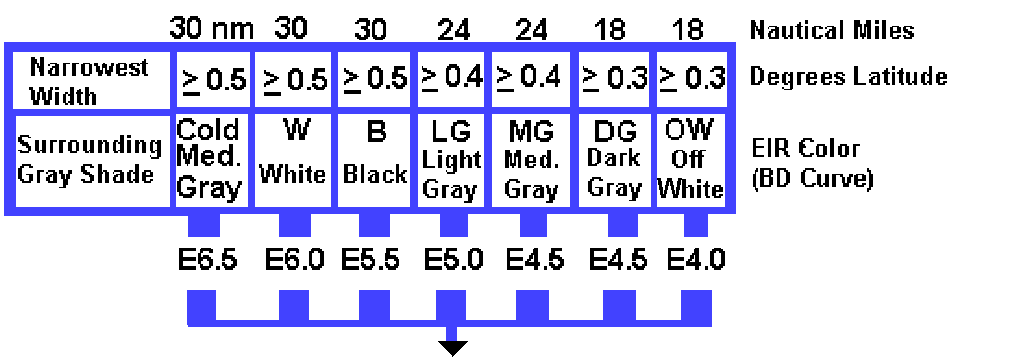

  • Apply Values to E# Table

    •

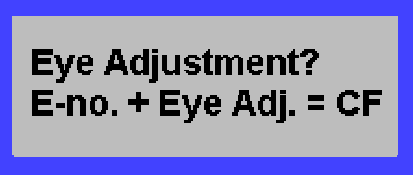

    Go on to the EYE ADJUSTMENT after
    you enter this information
    into your Dvorak Worksheet

     Do you need a  Banding Feature Addition?
     After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4

    Go to Step 4 Now
    (Skip step 3 if you chose 2A,B,C or E)
    Go to the Previous Step
    Go to Step 3 (CCC) if needed
    Return to top level EIR Dvorak Page
    Go to Visual Dvorak Page
    Return to main Dvorak Page
