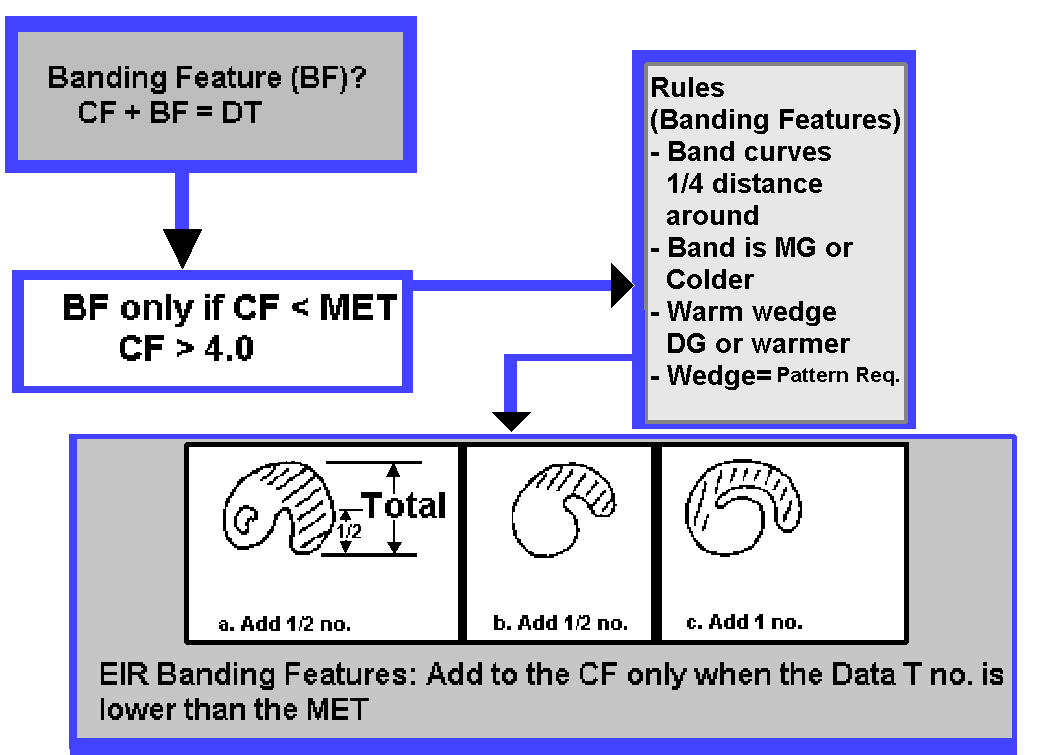

Enhanced IR Step 2: Banding Feature
Banding Feature Addition: Used with Eyes & Embedded Centers

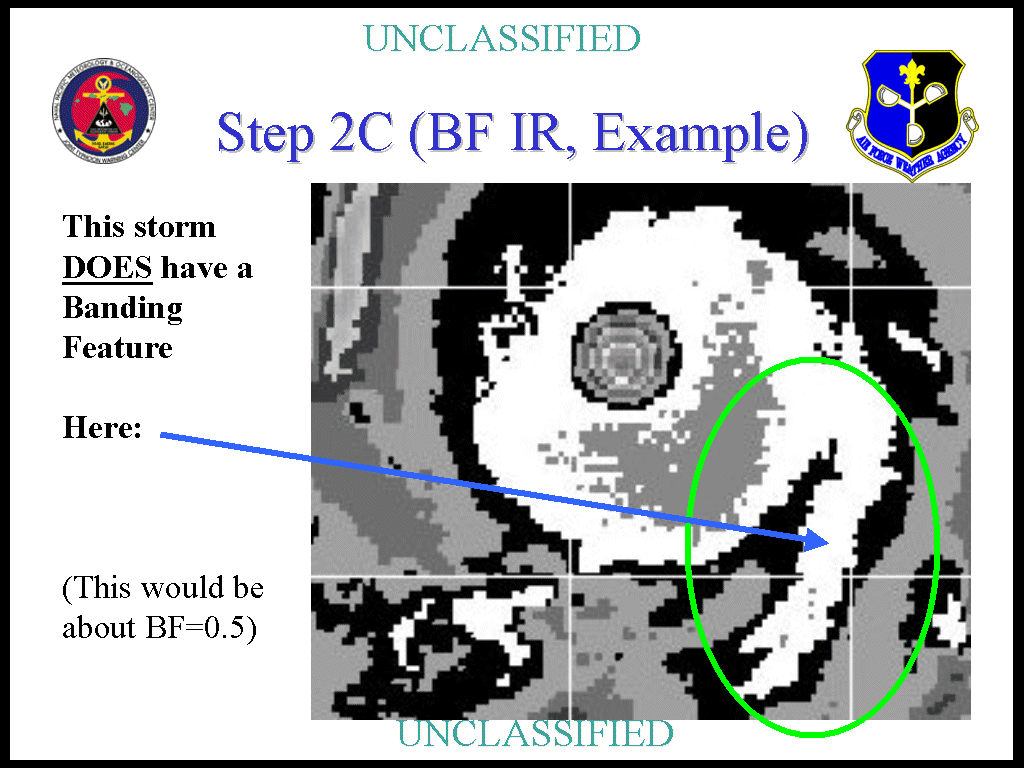

 Click here for an example of a banding feature with an EYE!

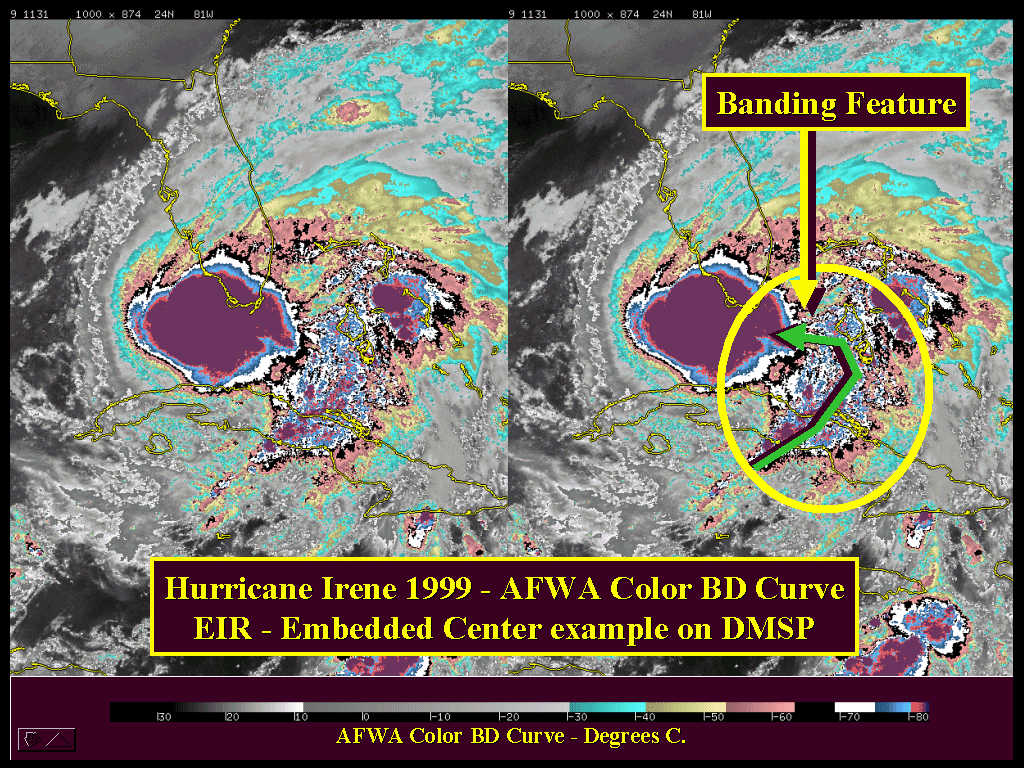

Click here for an example of a banding feature with an Embedded Center!
 After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or E)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level EIR Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
