Enhanced IR Step 2C
EIR "EYE" Pattern (Continued-2): EYE ADJUSTMENT #



NOTES:
  • Each abbreviation on the EIR Eye adjustment chart comes from the BD enhancement curve, which Dvorak developed and used for EIR analysis on Tropical Cyclones (TC).
  • Each color is directly correlated to a temperature range.
  • It is standard to use these shortened color terms rather that the temperature values themselves in TC Analysis.
  • Find the shade of the coldest ring completely surrounding the eye (without respect to embedded distance).
  • MUST USE BD CURVE!

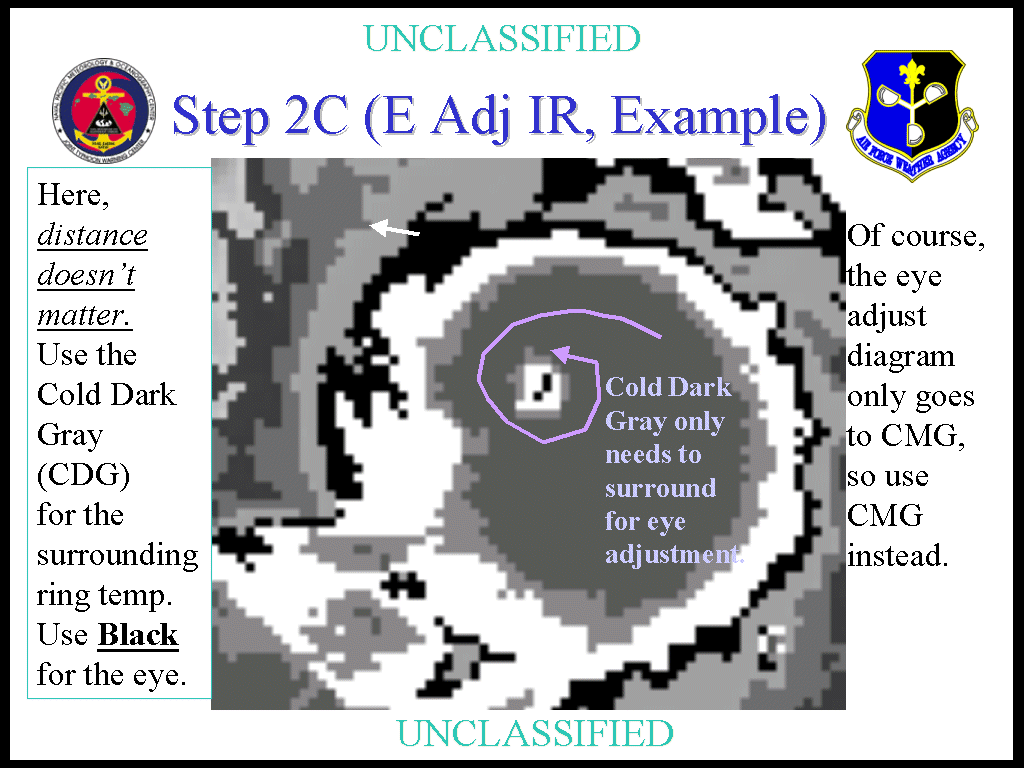

  • Click here for the first example image!

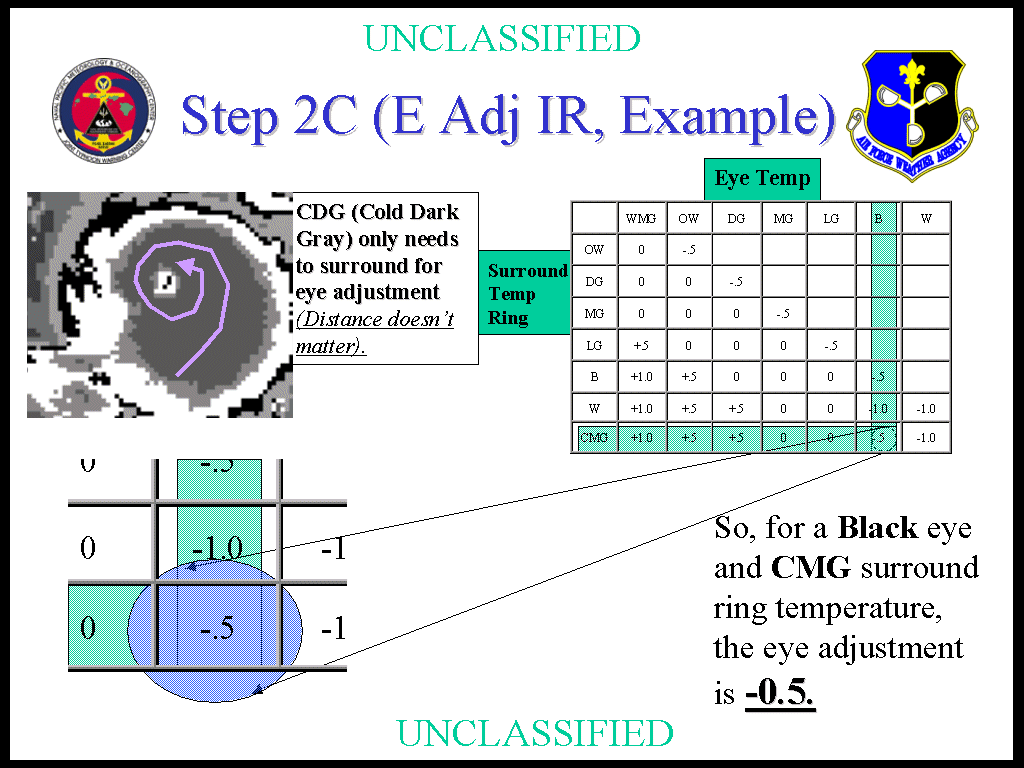

    Click here for another example!
    • Determine the warmest shade in the eye and the shade of the coldest ring surrounding the eye.

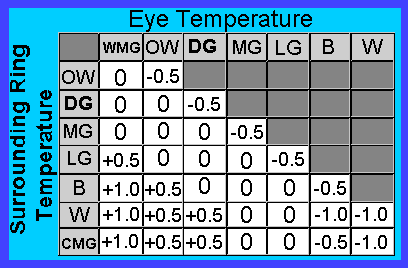

    • Apply these shades  to the Eye Adjustment table.
    • You should get a -1.0, -0.5, 0.0, 0.5 or 1.0 .
    • Do not use for eyes 45nm diameter or larger.
    • For elongated eyes, subtract 0.5 if none subtracted by chart.
    Go on to the Banding feature
    you enter this information
    into your Dvorak Worksheet

     Do you need a  Banding Feature Addition?
     After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
    Go to Step 4 Now
    (Skip step 3 if you chose 2A,B,C or E)
    Go to the Previous Step
    Go to Step 3 (CCC) if needed
    Return to top level EIR Dvorak Page
    Go to Visual Dvorak Page
    Return to main Dvorak Page
