Enhanced IR Step 2E
EIR "Embedded Center" Pattern (Continued):

Continued.....
  • Only used with IR images and when Final-T from 12 hours previous was > 3.5.
  • MUST USE BD CURVE!


  • Click here for an example!

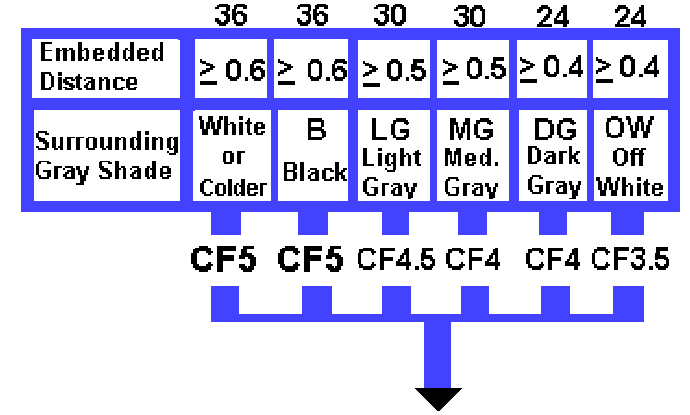

    • Determine distance at which the center is embedded into the shades of the BD curve and apply to chart (above).
  • Embedded Center is never used in VISUAL!  This is ONLY for EIR!
  • Add Banding Feature.
  • Apply Values to E# Table

  •
     Do you need a  Banding Feature Addition?
     After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
    Go to Step 4 Now
    (Skip step 3 if you chose 2A,B,C or E)
    Go to the Previous Step
    Go to Step 3 (CCC) if needed
    Return to top level EIR Dvorak Page
    Go to Visual Dvorak Page
    Return to main Dvorak Page
