Enhanced IR Step 2a

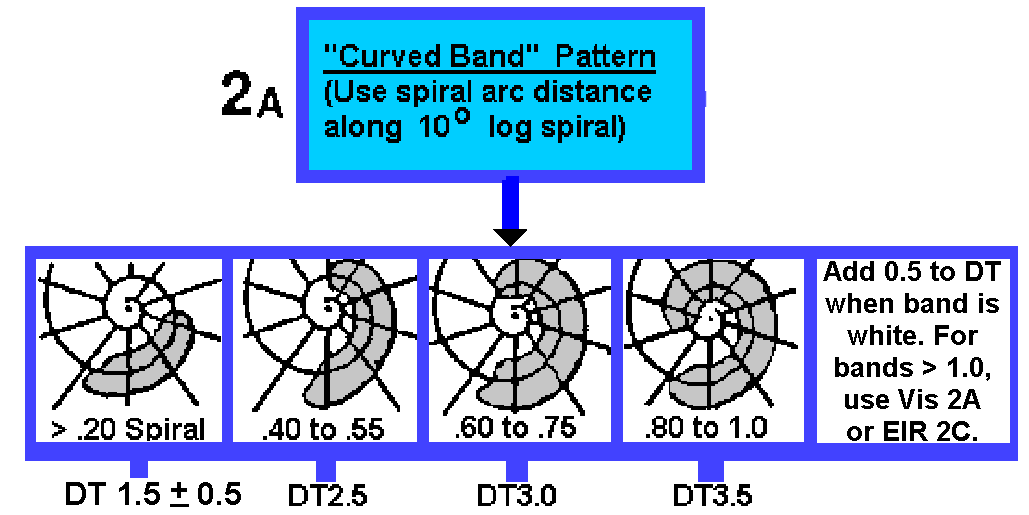

Curved Band Pattern:



Go on to Step 4 after you enter this information into your Dvorak Worksheet
If the band wraps more than 1.0, use the Visual 2A Chart.

Did you pick the wrong feature?
Try again!

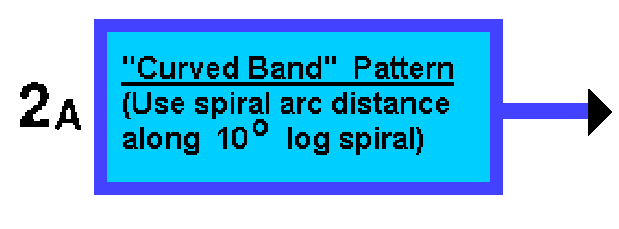

Use this method of your position is based on:
Spiral Band Curvature (SBC), Animation (ANMTN), Cloud Minimum Wedge (CMW), Tightly Curved Band, Circle Method, or Conservative Features.

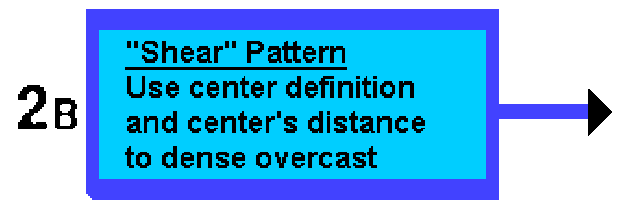

Use this method of your position is based on:
Exposed Low Level Circulation Center (XPSD LLCC), or Partially Exposed Low Level Circulation Center (PRTLY XPSD LLCC)

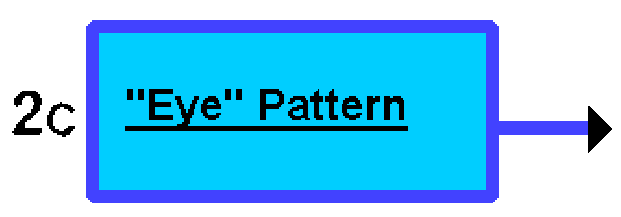

Use this method of your position is based on:
Any kind of eye feature.  This includes ragged eyes and it can include banding eyes.

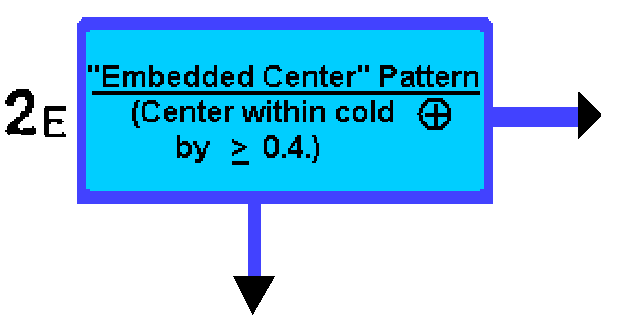

Use this method of your position is based on:
Any Embedded Center Features.
  • This is NOT the same as CDO - which is  only for Visual
  • This is ONLY for T3.5 and higher
  • This is only done in EIR.
Skip step 3 if you chose
2A,B,C or E
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or E)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level EIR Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
