Enhanced IR Step 2

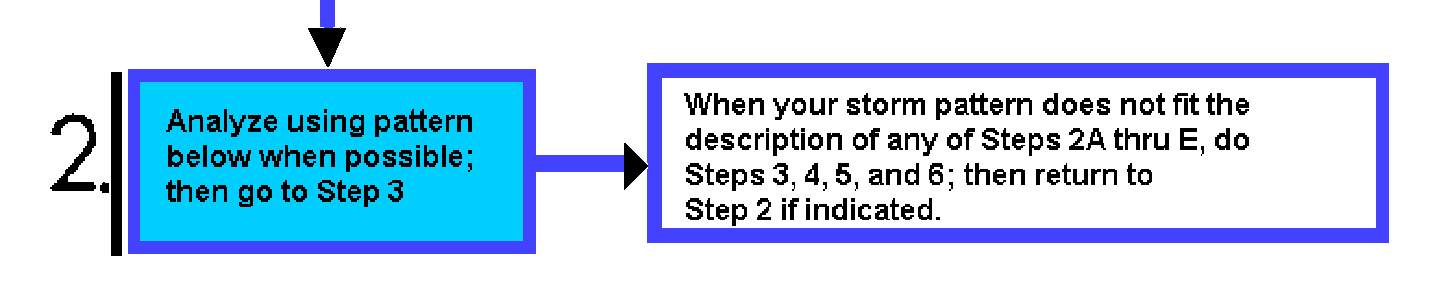

Select proper cloud pattern:



Go to Step 3 NOW  IF (and only if) the cloud feature is a Central Cold Cover (CCC).
Use this method of your position is based on:
Spiral Band Curvature (SBC), Animation (ANMTN), Cloud Minimum Wedge (CMW), Tightly Curved Band, Circle Method, or Conservative Features.
Use this method of your position is based on:
Exposed Low Level Circulation Center (XPSD LLCC), or Partially Exposed Low Level Circulation Center (PRTLY XPSD LLCC)
Use this method of your position is based on:
Any kind of eye feature.  This includes ragged eyes and it can include banding eyes.
Use this method of your position is based on:
Any Embedded Center Features.
  • This is NOT the same as CDO - which is  only for Visual
  • This is ONLY for T3.5 and higher
  • This is only done in EIR.
Skip step 3 if you chose
2A,B,C or E
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or E)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level EIR Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
