Visual Step 2B

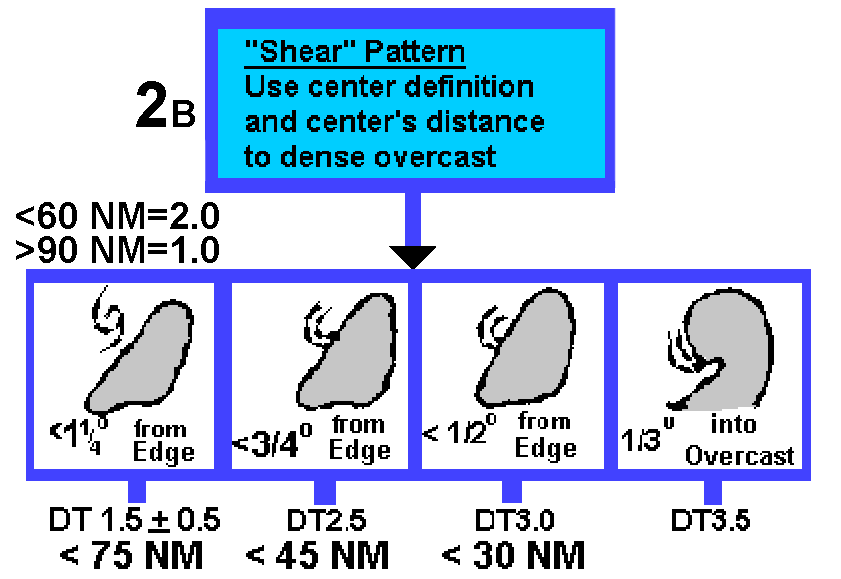

Shear Pattern:


Go on to Step 4 after you enter this information into your Dvorak Worksheet


Did you pick the wrong feature?
Try again!

Use this method of your position is based on:
Spiral Band Curvature (SBC), Animation (ANMTN), Cloud Minimum Wedge (CMW), Tightly Curved Band, Circle Method, or Conservative Features.
Use this method of your position is based on:
Exposed Low Level Circulation Center (XPSD LLCC), or Partially Exposed Low Level Circulation Center (PRTLY XPSD LLCC)
Use this method of your position is based on:
Any kind of eye feature.  This includes ragged eyes and it can include banding eyes.
Use this method of your position is based on:
Any Central Dense Overcast Features.
  • This is NOT the same as Embedded Center - which is only for Enhanced Infrared
  • This is ONLY for T2.0 and higher
  • This is only done in Visual.
Skip Step 3 if you chose
2A,B,C or D
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or D)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level VISUAL Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
