Visual Step 9

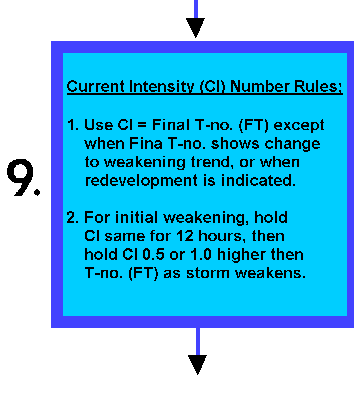

Current Intensity (CI) Number Rules:


1. Make the CI the same as Final-T during development, but hold higher during weakening.

2. Do not lower CI until at least 12 hours have past.


3.  3. CI will not be more that 1.0 greater than Final-T (CI can be either 0.5 or 1.0 higher than FT).
  • 4. Why hold CI higher during weakening?
    • Storm surface vorticity (spin) is conserved for a period of time, even though the cloud features seem unimpressive.
    • CAREFUL! The storm will appear weak, but still maintain enough energy to have strong winds

    Go to Step 10
    Return to top level visual Dvorak Page
    Return to main Dvorak Page
